Corridor Fence Forming Machine – Model E-1

Corridor Fence Forming Machine – Model E-1

Note about pricing: Prices shown below are estimates and may slightly vary based on the material cost.

Login

PRODUCT DESCRIPTION

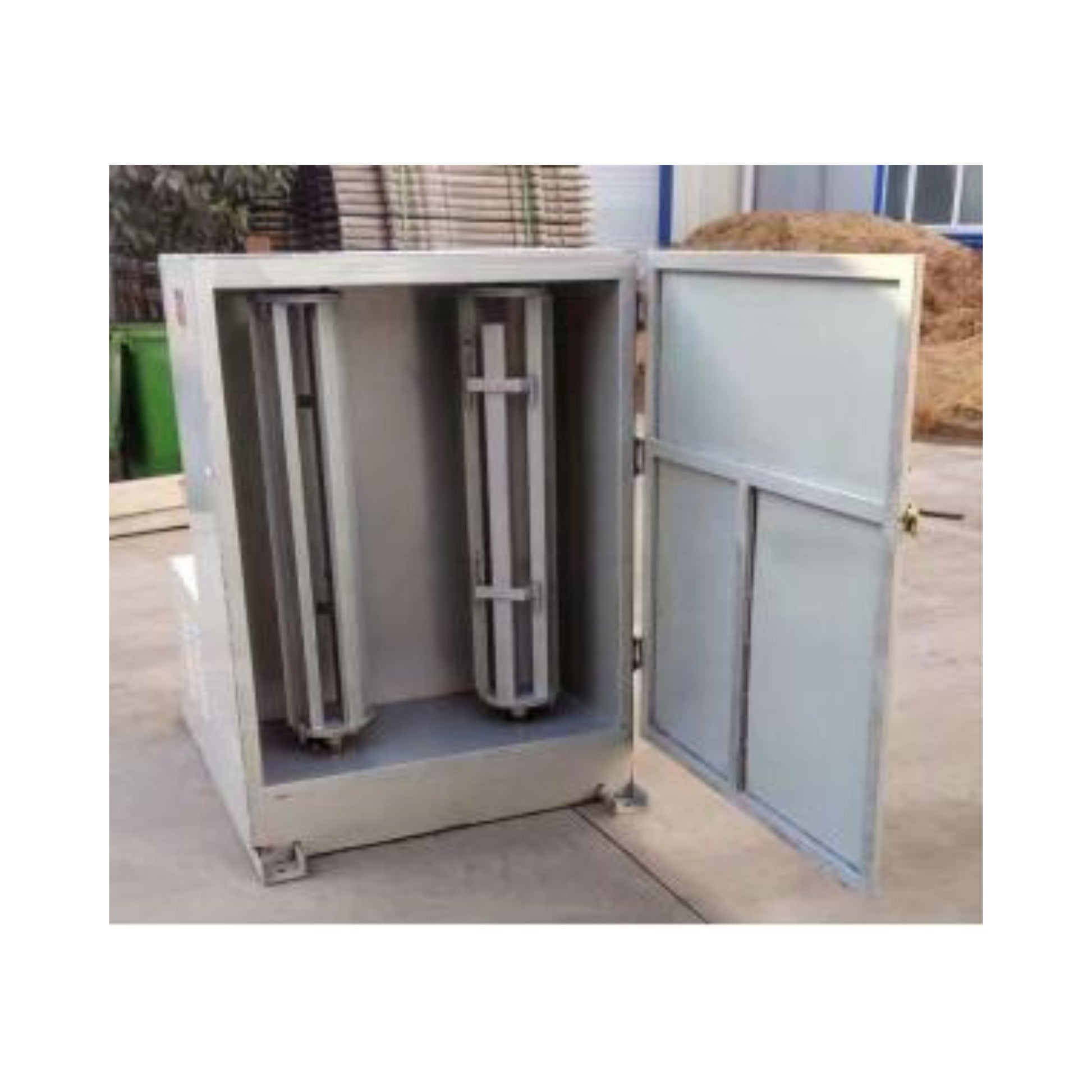

Model E-1 is a mechanical forming system designed for shaping precast concrete balusters and fences. It supports two configurations based on mold height requirements—one for molds under 1000 mm and another for molds up to 1600 mm. The machine is suitable for use with a wide range of precast fence and baluster molds and is ideal for use in small to medium-scale production settings. Built with a 3 kW motor and compatible with both 220V and 380V power, it provides stable rotation at 800 rpm for smooth and consistent results.

SPECIFICATION

Model: E-1

Design Type: Corridor fence and baluster forming machine

Application: Precast concrete baluster and fence molding

Power: 3 kW

Voltage: 220V / 380V

Rotating Speed: 800 rpm/m

Machine Size Options:

For molds less than 1000 mm high:

Height: 1300 mm

Width: 1000 mm

Length: 1000 mm

For molds less than 1600 mm high:

Height: 2000 mm

Width: 1500 mm

Length: 1500 mm
