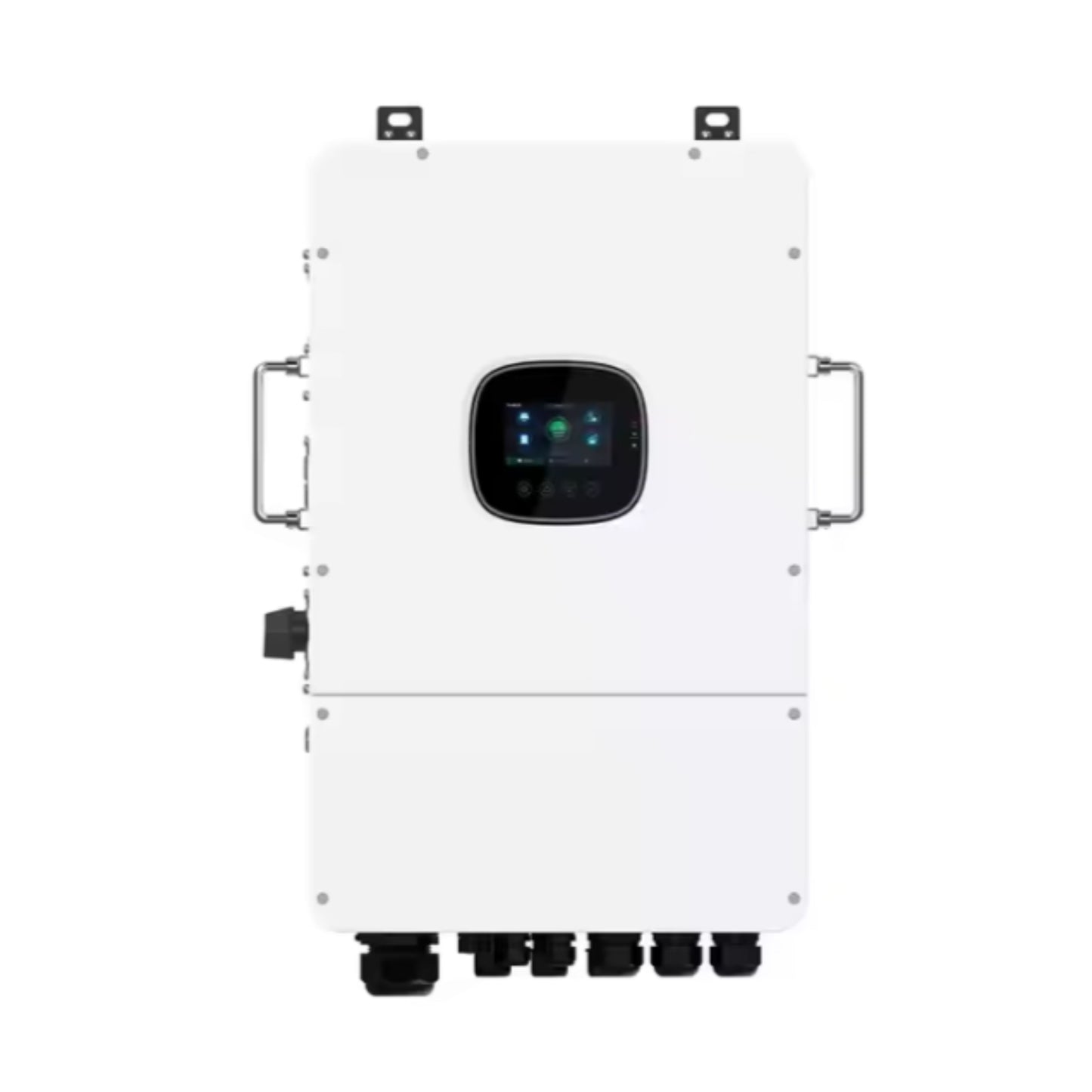

12KW Hybrid Solar Inverter – High-Efficiency DC to AC Power Conversion

12KW Hybrid Solar Inverter – High-Efficiency DC to AC Power Conversion

PRODUCT DESCRIPTION

Enhance your solar power system with the 12KW Hybrid Solar Inverter, designed for efficient energy conversion and seamless power management. This advanced inverter supports single-phase (230V), split-phase (240V), and three-phase operation in parallel, making it a versatile solution for residential and commercial applications.

With dual MPPT technology, it maximizes solar energy capture, handling up to 6,600W + 6,600W of PV array power. Built with an IP65-rated enclosure, it offers superior durability for both indoor and outdoor installations. Ideal for off-grid, grid-tied, and hybrid solar systems, this inverter ensures stable and reliable power supply for sustainable energy solutions.

SPECIFICATION

Type: Hybrid DC/AC Inverter

Rated Output Power: 12,000W (12KW)

Rated Output Voltage: 230V (Single-Phase) / 240V (Split-Phase) / Three-Phase (Parallel Mode)

Max PV Array Power: 6,600W + 6,600W

Rated Battery Voltage: 48VDC

Number of MPPTs: 2

Frequency Range: 50/60Hz

Dimensions: 670 × 440 × 240mm

Weight: 37kg

Protection Degree: IP65 (Dust & Water Resistant)

Warranty: 5 Years
